Horizontal Air Handling Unit
Horizontal Air Handling Unit

Horizontal Air Handling Unit

A Horizontal Air Handling Unit (AHU) is an HVAC equipment designed for horizontal installation with airflow moving horizontally through the unit. It integrates all essential air handling functions such as heating, cooling, humidification, dehumidification, and air filtration. This design is ideal for buildings where space-saving or optimized installation layout is required.
Send Inquiry
Overview



A Horizontal Air Handling Unit (AHU) is an HVAC equipment designed for horizontal installation with airflow moving horizontally through the unit. It integrates all essential air handling functions such as heating, cooling, humidification, dehumidification, and air filtration. This design is ideal for buildings where space-saving or optimized installation layout is required.



  AZRF8 AZRF15 AZRF22 AZRF30 AZRF35 AZRF45 AZRF60 AZRF70 AZRF90 AZRF120 AZRF150 AZRF180 AZRF210 ZRF240 A ZRF270 AZRF300 AZRF360
AZJRF8 AZJRF15 AZJRF22 AZJRF30 AZJRF35 AZJRF45 AZJRF60 AZJRF70 AZJRF90 AZJRF120 AZJRF150 AZJRF180 AZJRF210 AZJRF240 AZJRF270 AZJRF300 AZJRF360
AC Unit Performance Parameters Cooling Capacity kw 8 15 22 29 35 45 60 70 90 120 150 180 210 240 270 300 350
Heating Capacity kw 8 15 22 29 35 45 60 70 90 120 150 180 210 240 270 300 350
Air Flow m³h 1500 3000 4500 6000 7000 8000 10000 13000 15000 20000 23000 26000 32000 40000 46000 50000 60000
External Pressure Pa 300/700 300/700 300/800 300/800 300/800 300/850 300/850 300/900 300/900 300/900 300/900 400/1000 400/1000 400/1000 400/1000 400/1000 400/1000
Unit Noise dB(A) 60/70 62/72 68/76 69/77 70/77 71/78 7178 72/78 72/80 71/79 73/80 74/81 75/82 75/82 76/83 77/84 78/85
Auxiliary Electric Heating kw 4 6 8 10 12 15 16 22 25 30 40 45 50 60 65 70 84
Temperature Range and Accuracy 18-25℃±1.0-2.0℃
Power Supply 380V50Hz Three-phase Four-wire System
Total Unit Capacity kw 7.5/7.951 206/13.15 16.5/17.8 21/23 25/26.5 31/33.5 40/43 49/54 58/62 76/80 95/99 107114 135/142 154/165 174/182 194/201 225/240
Cooling System Compressor Type Fully Enclosed Scroll Type Semi-enclosed Integral Screw Type
Quantity 1 2 4 6 1
Power (kw) 2.25 3.75 6 7.5 9 11.25 15 18.5 22.4 30 37.6 45 52.7 52.4 64.7 68 75
Refrigerant Type R22
Evaporator Type Copper Tube with Aluminum Fin Type
Outdoor Unit Model 3HPN 5HPN 8HPN 10HPN 12HPN 15HPN 20HPN 24HPN 30HPN 40HPN 48HPN 60HPN 72HPN 80HPN 96HPN 100HPN 120HPN
Quantity 1 2 3 1
Fan Power(kw) 0.6 1.2 0.75 1.1 1.1 1.5 2.2 3 3 4.4 5 6 6.6 6.6 6.6 12 12
SIZE

long

m

m

 Mixing Section 600 600 600 600 600 600 600 600 800 800 800 800 1000 1000 1000 1000 1000
Primary Effect Section 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400
Cooling Coil Drainage Section 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600
Heating Section 300 300 300 300 300 300 300 300 300 300 300 300 300 300 300 300 300
Humidifying Section 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600
Fan Section 1100 1300 1300 1300 1300 1300 1450 1650 1650 1750 1750 1850 2000 2200 2400 2400 2500
Middle Section 800 800 800 800 800 800 800 800 800 800 800 800 800 800 800 800 800
Medium Effect Section 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400
Air Supply Section 600 600 600 600 600 600 600 600 800 800 800 800 1000 1000 1000 1000 1000
Width (mm) 800 900 1000 1200 1200 1400 1500 1500 1850 1850 2000 2200 2200 2500 2800 2800 3100
Height (mm) 800 900 900 1200 1200 1200 1400 1400 1500 1600 1800 1800 1800 2200 2200 2500 2500
Air Filter Type Initial effect Medium effect
Centrifugal Fan Power kw 0.75/1.1 1.1/2.2 1.5/3.0 2.2/4 3/4.4 3.0/5.5 417.5 5.5/11.0 7.5/11.0 11.0/15 1.0/15 /18.5 15.0/22 8.5|30 022/30 30.0/37 30.0/45
Weight kg 300 450 540 730 700 820 920 1150 1400 1800 000 2200 2400 2600 2900 3100 3300



Return Air Conditions:

  • Cooling: Inlet air dry-bulb temperature is 27°C, wet-bulb temperature is 19.5°C; inlet water temperature is 7°C with a water temperature difference of 5°C between inlet and outlet.
  • Heating: Inlet air dry-bulb temperature is 15°C; hot water inlet temperature is 60°C.



Fresh Air Conditions:

  • Cooling: Inlet air dry-bulb temperature is 34°C, wet-bulb temperature is 28°C; inlet water temperature is 7°C with a water temperature difference of 5°C between inlet and outlet.
  • Heating: Inlet air dry-bulb temperature is -4°C; hot water inlet temperature is 60°C.



Key Features



  • Space Efficient:Horizontal AHUs are designed for installation in spaces such as under ceilings, in attics, or in mechanical rooms. Their compact horizontal layout maximizes the use of horizontal space, making them perfect for applications where floor space is limited or where optimizing floor plan layout is crucial.
  • Integrated System:These units typically integrate components such as fans, heating and cooling coils, filters, and control systems into a single package. This integrated design simplifies installation and maintenance, ensuring coordinated operation of all components.
  • Multi-functionality:Horizontal AHUs handle various air processing tasks, including air heating, cooling, humidification, dehumidification, and filtration. Their versatility allows them to meet the diverse needs of different buildings and environments.
  • High Efficiency:Modern horizontal AHUs incorporate energy-saving technologies such as variable-speed fans, high-efficiency heat exchangers, and smart control systems. These features enhance energy efficiency and significantly reduce operational costs.
  • Quiet Operation:These units are often equipped with noise-reducing features to ensure minimal operational noise, making them suitable for noise-sensitive environments like offices, hospitals, and schools.
  • Easy Maintenance:Horizontal AHUs are designed with ease of maintenance in mind, typically featuring removable panels or doors for quick access to internal components. This facilitates regular upkeep, reduces maintenance time and costs, and ensures reliable system operation.
  • Flexible Configuration:They offer various configuration options, allowing adjustments based on specific requirements, such as different airflow rates, filtration levels, and humidification methods. This flexibility makes them suitable for a wide range of applications.



Applications



  • Commercial Buildings:Ideal for use in offices, shopping centers, hotels, and restaurants, providing efficient air handling and a comfortable indoor environment.
  • Educational Institutions:Installed in schools, universities, and training centers to ensure air quality and temperature control in classrooms and other learning spaces, creating a comfortable learning environment.
  • Healthcare Facilities:Used in hospitals, clinics, and other medical facilities to provide clean air and strictly controlled indoor environments, essential for patient care and staff comfort.
  • Industrial Settings:Employed in factories, warehouses, and production workshops to ensure temperature and air quality control, protecting equipment and products from environmental variations and air contaminants.
  • Residential Buildings:Used in apartment buildings and residential complexes to provide a comfortable indoor air environment and efficient air handling systems for residents.
  • Data Centers:Applied in data centers and server rooms to maintain the precise temperature and humidity conditions required for the stable operation of electronic equipment.

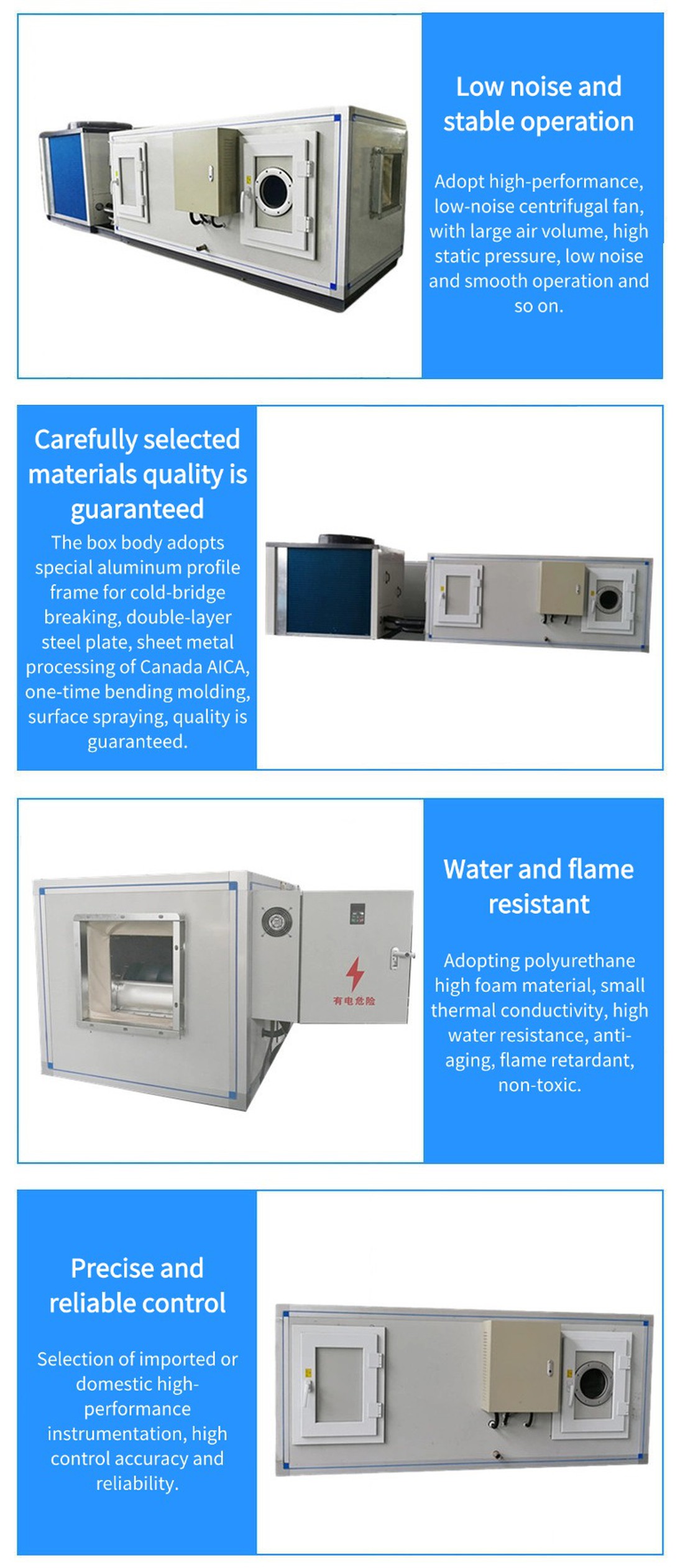

32

.jpg






product-907-456







FAQ



Q: Can products be produced according to customer requirements?

A: Yes, the specifications mentioned above are standard, and we can design and manufacture according to your requirements.

Q: Is it allowed to visit the factory?

A: Yes, we welcome customers to visit our factory.

Q: Are you looking for agents?

A: Yes, we are looking for agents worldwide. Please contact us for further discussion.

Q: How do you resolve issues if there are malfunctions during the use of the equipment?

A: Please send us pictures or a video of the issue via email, and we will find and resolve the problem. If there is damage, we will send you new parts for free within the warranty period.

Q: What software do you use for your product drawings?

A: We use advanced industrial valve design and development software, such as AutoCAD.
