Overview

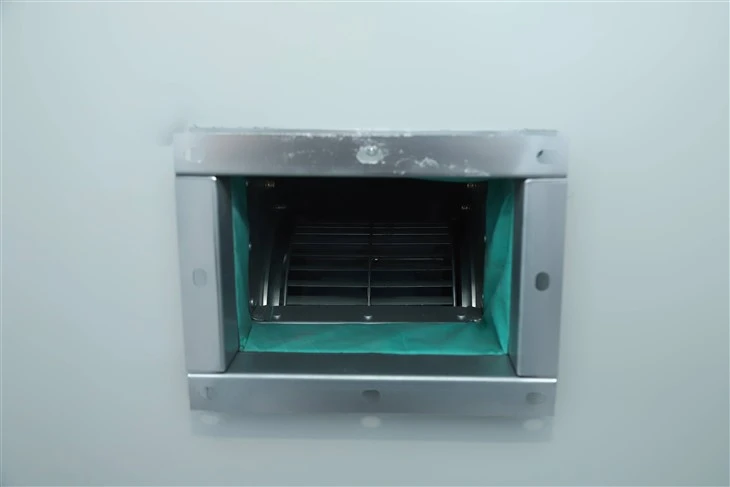

Energy Recovery Ventilator (ERV) is a type of ventilation system designed to improve indoor air quality while minimizing energy loss. It achieves this by transferring heat and moisture between incoming and outgoing air streams. ERVs are commonly used in residential, commercial, and industrial buildings where a balanced ventilation system is needed.
Parameters
|
Model |
Air volume(m³/h) |
Rotor shape (mm) |
Rotor depth (mm) |
Weight (kg) |
Wind speed (m/s) |
Heat exchange efficiency(%) |
Air resistance(pa) |
power |
|
ALQ-500 |
1790 |
700 |
290 |
32 |
5.5 |
70 |
250 |
3-380V50Hz |
|
ALQ-600 |
2600 |
800 |
290 |
41 |
||||
|
ALQ-700 |
3600 |
850 |
290 |
49 |
||||
|
ALQ-800 |
4700 |
900 |
290 |
57 |
||||
|
ALQ-900 |
6000 |
1000 |
290 |
68 |
||||
|
ALQ-1000 |
7300 |
1100 |
290 |
82 |
||||
|
ALQ-1100 |
9000 |
1200 |
290 |
97 |
||||
|
ALQ-1200 |
10500 |
1300 |
290 |
114 |
||||
|
ALQ-1300 |
12500 |
1400 |
290 |
130 |
||||
|
ALQ-1400 |
15000 |
1500 |
290 |
148 |
||||
|
ALQ-1500 |
16000 |
1600 |
290 |
167 |
||||
|
ALQ-1600 |
18500 |
1700 |
290 |
187 |
||||
|
ALQ-1700 |
21500 |
1800 |
290 |
211 |
||||
|
ALQ-1800 |
24000 |
1900 |
290 |
233 |
||||
|
ALQ-1900 |
26500 |
2000 |
290 |
257 |
||||
|
ALQ-2000 |
29000 |
2100 |
290 |
232 |
||||
|
ALQ-2200 |
35500 |
2300 |
290 |
335 |
||||
|
ALQ-2400 |
45000 |
2500 |
314 |
394 |
||||
|
ALQ-2500 |
46500 |
2600 |
314 |
420 |
||||
|
ALQ-2600 |
50000 |
2800 |
314 |
663 |
||||
|
ALQ-2800 |
58000 |
3000 |
314 |
763 |
||||
|
ALQ-3000 |
65000 |
3200 |
430 |
843 |
||||
|
ALQ-3200 |
76000 |
3400 |
430 |
934 |
||||
|
ALQ-3400 |
85000 |
3600 |
430 |
1022 |
||||
|
ALQ-3600 |
95000 |
3800 |
430 |
1174 |
||||
|
ALQ-3800 |
105000 |
4000 |
430 |
1272 |
||||
|
ALQ-4000 |
120000 |
4200 |
430 |
1374 |
Advantages
- Improved Indoor Air Quality: ERVs continuously exchange indoor air with fresh outdoor air while recovering both heat and moisture, effectively reducing indoor pollutants, allergens, and odors. This results in a healthier and more comfortable indoor environment for building occupants.
- Energy Efficiency: By recovering both heat and moisture from exhaust air and transferring it to incoming fresh air, ERVs significantly reduce the energy needed for heating or cooling in commercial buildings. This leads to substantial energy savings and lower utility costs over time.
- Cost Savings: The energy savings achieved by ERVs translate into reduced operational expenses for commercial building owners or operators, contributing to overall cost savings and improved financial performance.
- Moisture Control: ERVs help regulate indoor humidity levels by transferring moisture between incoming and outgoing air streams. This helps prevent issues such as mold growth, moisture damage, and discomfort, creating a more pleasant and healthier indoor environment.
- Temperature Regulation: ERVs contribute to maintaining consistent indoor temperatures by preheating or precooling incoming fresh air with recovered heat, ensuring optimal comfort for building occupants throughout the year.
- Reduced HVAC Load: By reducing the load on heating and cooling systems, ERVs extend the lifespan of HVAC equipment and reduce the frequency of maintenance and repairs, leading to lower lifecycle costs for commercial buildings.
- Compliance with Building Codes: Many building codes and standards require the implementation of energy-efficient ventilation systems like ERVs in commercial buildings to meet energy efficiency and indoor air quality requirements, ensuring compliance with regulatory mandates.
- Environmental Sustainability: ERVs help reduce the overall energy consumption and carbon footprint of commercial buildings, contributing to environmental sustainability and corporate social responsibility goals.
